Victor
Road and street lantern combining advanced performance with a modern and timeless styling
- Schutzart IP66 gewährleistet Langlebigkeit der Komponenten und Leistungsfähigkeit während des Produktlebens
- Ermöglicht schnelle Wartung und Installation, zusätzlicher Dreh- und Schließmechanismus für einfachen Zugang zu den Komponenten

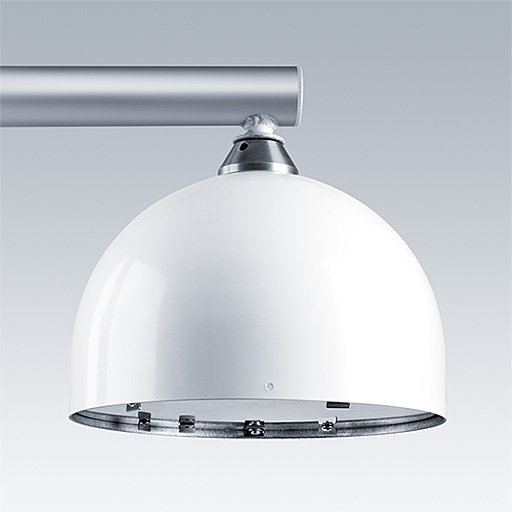

- Verschiedene Befestigungen für Mastaufsatz- und Mastansatzmontage sowie Spannseilabhängung
Material/Ausfertigung
Body: aluminium powder coated NCS0500 (White)
Spigot: corrosion protected steel
Enclosure: 4mm clear toughened glass
Screws and clips: stainless steel
(EN AC-44300).
Standard corrosion class C5 according to ISO 9223: 2012.
Installation/Montage
Mounting spigot of female 3/4" pipe thread type (for Ø27G male threaded tube). Large choice of fixings for post-top, side entry or catenary (see Columns section of the catalogue). Cable gland for Ø6mm to Ø13mm cable. Access from below to gear and optic system after quick release of the hinged glass enclosure via 'twist and lock' design. Automatic disconnection of the electrical mains when opening. Mounting plate with optics and control gear has hinge suspension and stays attached when released. Tool free connection to 2x2.5mm² terminal. Complete with wired 8m (W8) or 10m (W10) cable.
Spezifikation
To specify state:
Full IP66 aluminium road and street lighting luminaire in two sizes. For 26W to 250W lamps and 1500lm to 10000lm LED modules. Female spigot mounting onto Ø27G tube. Automatic disconnection at opening and tool free access to optic and gear tray. With options for electronic gears, dimming and lighting management system.
As Thorn Victor.
